John Deere

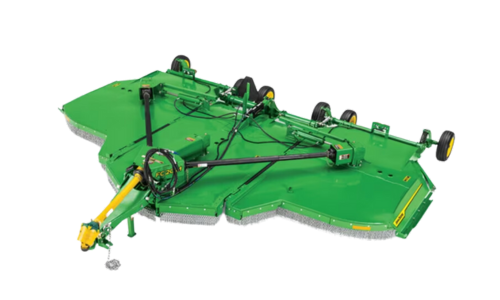

FC20M Flex Wing Rotary Cutter

John Deere flex-wing rotary cutters lead the way with innovative design, superior durability, and proven performance. Valuable features are included such as a dome-shaped smooth deck, which prevent water and debris from accumulating on the top of the machine and makes it easy to clean up.

Built with a superior structural design that will satisfy different applications and segment desires, the single deck on the flex-wing cutters adds volume on the cutting chamber, allowing the machine to process more material and translating into an improvement in cut quality. The cutting chamber design allows the material to flow through the area and be discharged evenly throughout the width of the machine.

BUY OR LEASE TODAY

Equipment Specifications

Cutting Width: 6.1m 20ft
Cutting Capacity (diameter): 76.2mm 3in.
Transport PTO HP Range: 56kW, 75hp
Transport width: At wing wheels: 3.4 m 11.1 ft
Deck thickness: 10 gauge - 3.4 mm 0.135 in.
Side skirt thickness: 3 gauge - 6 mm 0.24 in.
Approx. weight: 2957 kg 6520 lb
Drivelines - Size - Main: CV ASAE Category 5, splined telescoping profiles
Blade tip speed - 540 rpm - 1000 rpm:540 rpm: 81.7 m/s | 268.1 fps| 1000 rpm: 83 m/s| 272.4 fps
Gearboxes: 5-year warranty

Features

  • 20 ft. cutting width
  • 540 or 1000 PTO RPM
  • Front and rear suspension options
  • Laminated, pneumatic, or foam filled 4-bolt tires
